Steel Tube & Profile Products

Katırcıoğlu Metal offers a comprehensive range of steel tube and profile products, delivering high-quality, reliable, and efficient solutions for the industrial, construction, steel fabrication, and manufacturing sectors.

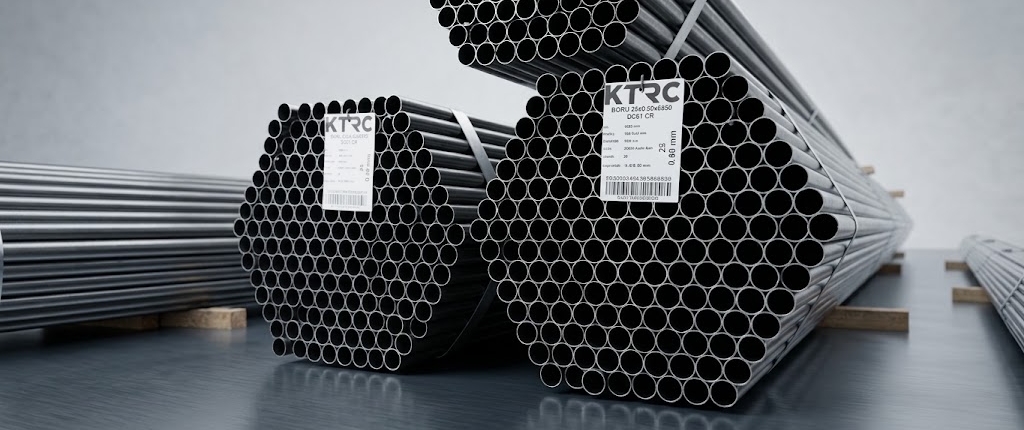

Pipe

Outer Diameter: Ø10 mm – Ø76 mm, Wall Thickness: 0.50 mm – 3.00 mm, Length: 3000 mm – 9000 mm

Custom outer diameters and wall thicknesses can be manufactured upon request. In addition to the standard length of 6000 mm, custom cutting is available within the range of 3000 mm to 9000 mm according to order requirements. In galvanized pipe manufacturing, the weld seam line is coated with a protective layer using zinc spraying technology.

STEEL PIPE PRODUCTION RANGE
Outer Diameter (mm)	0.30 CRF	0.40	0.50	0.60	0.80	0.90	1.00	1.20	1.50	2.00
Ø8	✓	✓	✓	✓	✓
Ø9	✓	✓	✓	✓	✓
Ø10	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Ø12	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Ø13	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Ø14		✓	✓	✓	✓	✓	✓	✓	✓	✓
Ø15		✓	✓	✓	✓	✓	✓	✓	✓	✓
Ø16		✓	✓	✓	✓	✓	✓	✓	✓	✓
Ø17		✓	✓	✓	✓	✓	✓	✓	✓
Ø19		✓	✓	✓	✓	✓	✓	✓	✓	✓
Ø21		✓	✓	✓	✓	✓	✓	✓	✓	✓
Ø22		✓	✓	✓	✓	✓	✓	✓	✓	✓
Ø23.5	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Ø25		✓	✓	✓	✓	✓	✓	✓	✓	✓
Ø28		✓	✓	✓	✓	✓	✓	✓	✓	✓
Ø30			✓	✓	✓	✓	✓	✓	✓
Ø32			✓	✓	✓	✓	✓	✓	✓	✓
Ø38			✓	✓	✓	✓	✓	✓	✓	✓
Ø42				✓	✓	✓	✓	✓	✓	✓
Ø45				✓	✓	✓	✓	✓	✓	✓
Ø48					✓	✓	✓	✓	✓	✓
Ø51				✓	✓	✓	✓	✓	✓	✓
Ø60				✓	✓	✓	✓	✓	✓	✓

PRODUCTION RANGE
PARAMETER	PRODUCTION RANGE
OUTER DIAMETER	Ø8 – 60 mm
WALL THICKNESS	0.30 – 2.00 mm
LENGTH	500 – 6000 mm

PIPE PACKAGING QUANTITIES
OUTER DIAMETER (MM)	PACKAGE QUANTITY (PCS)
Ø8	1000
Ø10	500
Ø12	469
Ø13	469
Ø14	331
Ø15	331
Ø16	331
Ø17	331
Ø19	271
Ø21	271
Ø22	271
Ø23.5	217
Ø25	217
Ø28	169
Ø30	127
Ø32	127
Ø38	91
Ø42	91
Ø45	91
Ø48	91
Ø51	91
Ø60	61

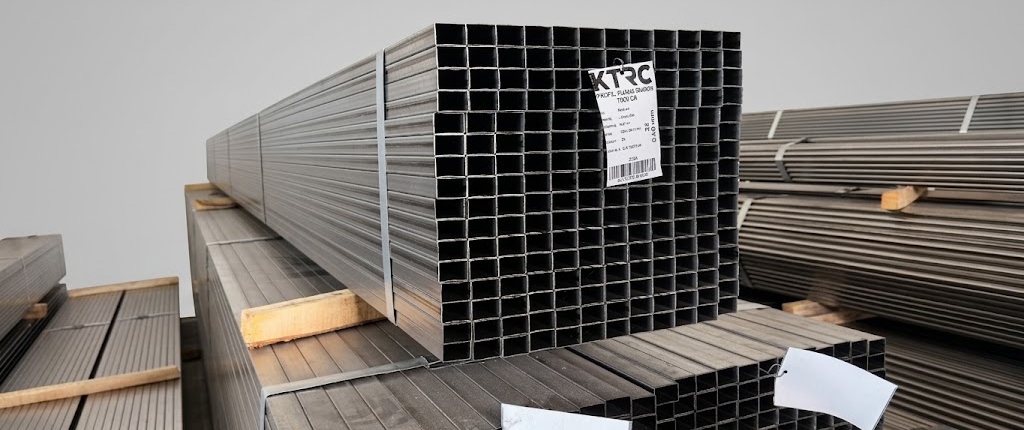

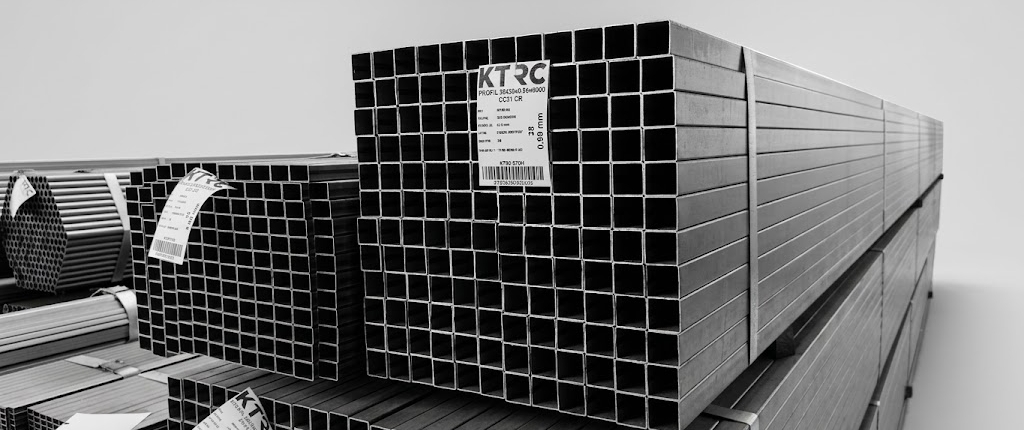

Square Hollow Section (SHS)

Dimensions: 10×10 mm – 60×60 mm, Wall Thickness: 0.50 mm – 3.00 mm, Length: 3000 mm – 9000 mm

SQUARE PROFILE PRODUCTION RANGE (EN 10305-5)
SECTION AND THICKNESS (MM)	0.30 CRF	0.40	0.50	0.60	0.80	0.90	1.00	1.20	1.50	2.00
10×10	✓	✓	✓	✓	✓	✓	✓	✓	✓
12.7×12.7	✓	✓	✓	✓	✓	✓	✓	✓	✓
15×15	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
16×16	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
20×20	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
25×25			✓	✓	✓	✓	✓	✓	✓	✓
30×30				✓	✓	✓	✓	✓	✓	✓
40×40				✓	✓	✓	✓	✓	✓	✓

SQUARE PROFILE PRODUCTION SUMMARY
PROPERTY	PRODUCTION RANGE
CROSS SECTION	10×10 – 40×40 mm
SHEET THICKNESS (MM)	0.30 – 2.00 mm
LENGTH (MM)	500 – 6000 mm

Custom sizes and wall thicknesses can be manufactured upon request. While the standard product length is 6000 mm, custom length cutting between 3000 mm and 9000 mm is available according to order specifications. The weld seam lines of galvanized profiles are coated using zinc spraying method to ensure corrosion resistance.

Rectangular Hollow Section (RHS)

Dimensions: 10×15 mm – 30×50 mm | Wall Thickness: 0.30 mm – 2.00 mm | Length: 3000 mm – 9000 mm

Custom sizes and wall thicknesses can be manufactured to order. While the standard product length is 6000 mm, custom lengths ranging from 3000 mm to 9000 mm can be produced for special orders. The weld seam area of galvanized profiles is coated using a zinc spraying method to ensure high corrosion resistance.

RECTANGULAR TUBE PRODUCTION RANGE (TS EN 10305-5)
SECTION AND THICKNESS (MM)	0.30 CRF	0.40	0.50	0.60	0.80	0.90	1.00	1.20	1.50	2.00
10×20	✓	✓	✓	✓	✓	✓	✓	✓	✓
10×25	✓	✓	✓	✓	✓	✓	✓	✓	✓
10×30	✓	✓	✓	✓	✓	✓	✓	✓	✓
15×20	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
15×25	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
15×30	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
20×25	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
20×30	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
20×40				✓	✓	✓	✓	✓	✓	✓
20×50				✓	✓	✓	✓	✓	✓	✓
20×60				✓	✓	✓	✓	✓	✓	✓
25×35			✓	✓	✓	✓	✓	✓	✓	✓
25×40				✓	✓	✓	✓	✓	✓	✓
30×35				✓	✓	✓	✓	✓	✓	✓
30×40				✓	✓	✓	✓	✓	✓	✓
30×50				✓	✓	✓	✓	✓	✓	✓

RECTANGULAR TUBE PRODUCTION SUMMARY
Specification	Production Range
Section Profile	10×15 – 30×50 mm
Wall Thickness (mm)	0,30 – 2,00 mm
Length (mm)	500 – 6000 mm

Special Profile

Wall Thickness: 0.50 mm – 3.00 mm | Length: 3000 mm – 9000 mm

Custom profile design and manufacturing are performed according to your project-specific cross-sections and geometries. In addition to the standard 6000 mm length option, production is available between 3000 mm and 9000 mm upon request. The weld seam area of galvanized profiles is protected against corrosion by coating with custom zinc spraying technology.

CUSTOM SIZE PROFILE PRODUCTION RANGE (TS EN 10305-3)
Section & Thickness (mm)	0.30 CRF	0.40	0.50	0.60	0.80	0.90	1.00	1.20	1.50	2.00
30×40 D				✓	✓	✓	✓	✓	✓	✓
15×30	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
20×35			✓	✓	✓	✓	✓	✓	✓	✓
20×40				✓	✓	✓	✓	✓	✓	✓
25×50				✓	✓	✓	✓	✓	✓	✓
21×47				✓	✓	✓	✓	✓	✓	✓
14×24	✓	✓	✓	✓	✓	✓	✓	✓	✓
